https://youtu.be/tbA7sb8sWdE

Ride Control App Video

High-powered battery options:

  • New 72V soft-pack batteries (with a special frame mount):
    Start with one and later add a second battery and our dual battery module to get mind-blowing power of 72v, 120 amps, 20ah, for 8,640 watts and 1,440 watt-hours
    72v, 80 amp, 15ah, for 5,760 watts and 1080 watt-hours 3.5x5.4x9 inches
    72v, 60 amp, 10ah, for 4,320 watts and 720 watt-hours 2.9x4.1x9 inches
    High-powered 52v batteries
    Family of high-power, high-capacity shark batteries that all share the same mount cradle to mix and match for different ranges.
    Mini-max delivers 50 amps and 520 watt hours for full suspension frames.

When selecting a battery for the X1 Pro Motor, ensure its performance aligns with your needs. Many riders pair this motor with one of our 52V 2,600-watt batteries, which provides more power than they want or need. The only batteries that can deliver the full power this motor requires are our 72V batteries. The 15AH battery can deliver 5,760 watts. The 10AH battery delivers 4,320 watts. Since this is below the 5,000 watts the X1 Pro can use, you must set the motor's maximum power in the Ride Control App to below the battery's maximum, or the battery life will be dramatically shortened.

Alternatively, you can use two of these 72V 10Ah batteries with our 120-amp dual-battery module for a total of over 8,500 watts. But don't worry, the motor will only draw what it needs; the battery will have power to spare. If you use a 52V 50A Shark battery, you would need to set the motor's maximum wattage to 2600 watts. Two 50-amp 52V Shark batteries and a dual-battery module get you over the 5,000-watt limit of this motor's max power.

The CYC X1 Pro Gen 4: Ultimate Power, Refined Control

Prepare for the next generation of high-performance riding. Built for demanding riders, the CYC X1 Pro Gen 4 gives maximum output without sacrificing the natural feel of a pedal-assist ride. At the heart of this system lies the new X12 controller, a powerhouse capable of handling 84V and 120A input to deliver a staggering 5000W continuous power and 6500W peak power.

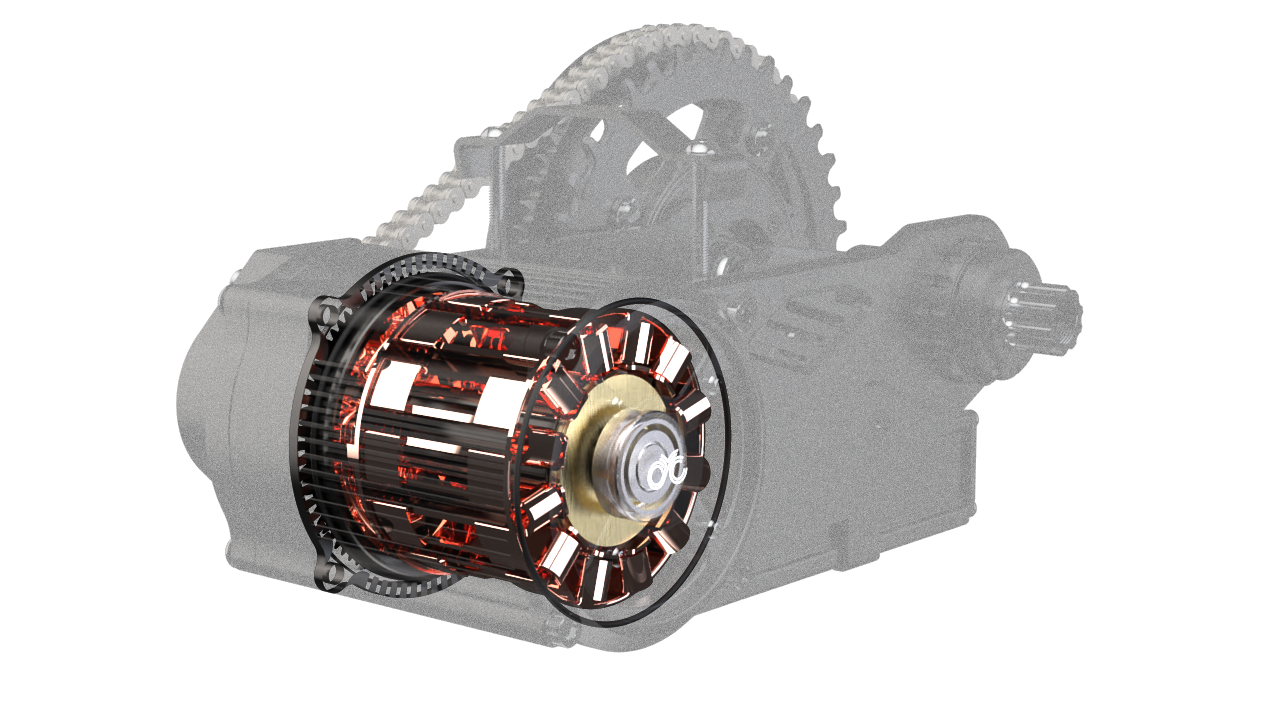

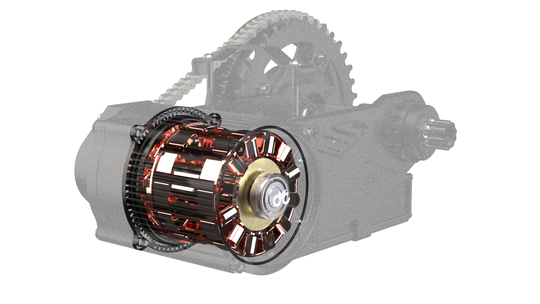

Engineered for the Extreme. This motor features a redesigned core that is 25% longer than its predecessor, optimized for thermal management to keep you riding harder for longer. Despite its massive output, it maintains the market’s highest power-to-weight ratio of 1.5kW per kg, ensuring your setup remains agile. With 280 N.m. of peak torque on tap, you can fly up mountains "like you have superpowers".

Seamless Integration and Handling. The Gen 4 utilizes advanced torque-sensing technology to provide instant engagement and the "nuanced torque-sensing feeling of a high-end eMTB". Designed for versatility, the kit preserves a perfect chain line and offers superior ground clearance, fitting over 95% of frame types, including carbon frames.

Dual Personality: Street Legal to Race Ready. Enjoy total freedom with two distinct, programmable modes achievable via the CYC Ride Control App:

  • Street Mode: This mode can be programmed to comply with any of the three legal ebike classes, strictly adhering to power and speed limits for lawful riding on public paths.

  • Race Mode: With the ability to switch profiles on the fly, you can instantly unlock the full potential of the X12 controller, delivering the raw speed and torque this machine was born to produce.

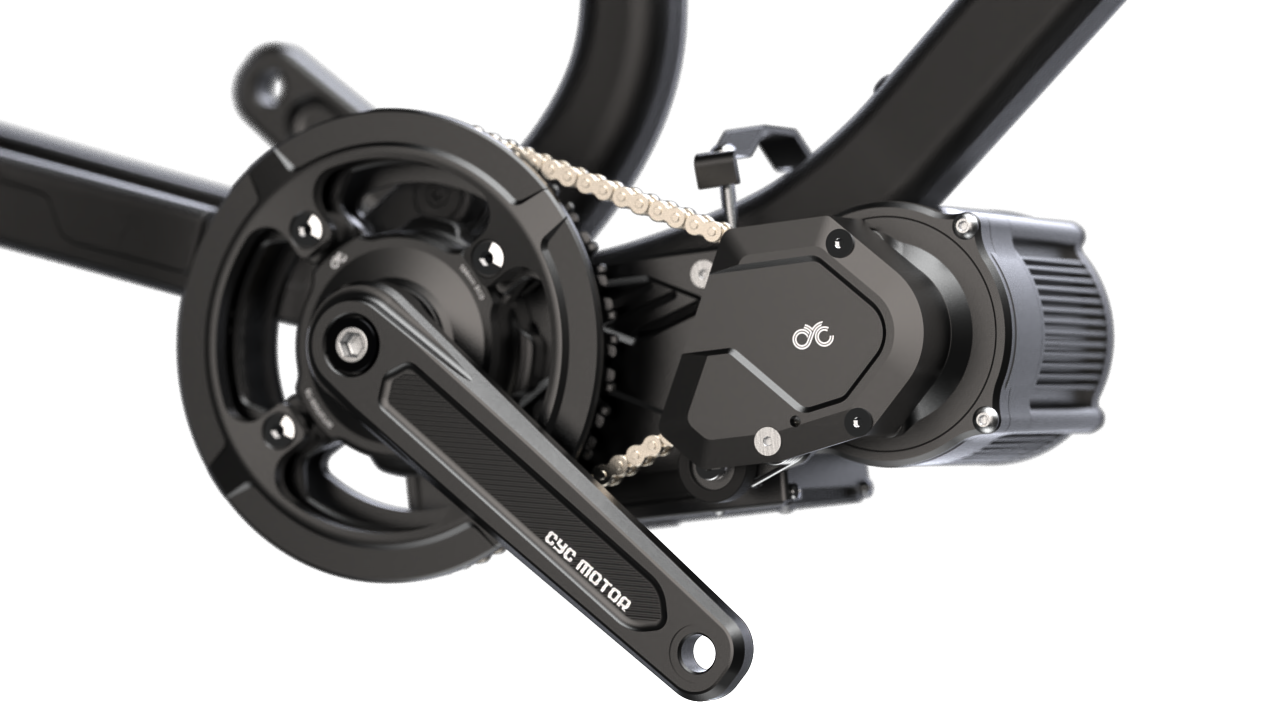

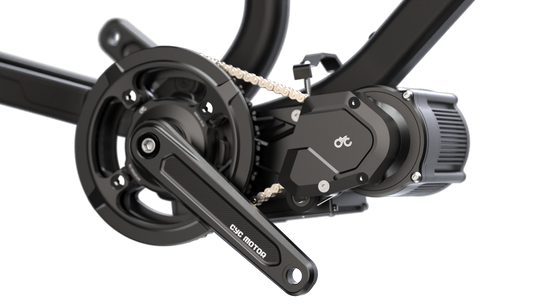

The X1 Pro Gen 4 motor preserves a perfect chain line on any bike and tucks high off the ground, even on modern mountain bikes with a curved downtube. Its torque and cadence sensing deliver power at your chosen cadence and detect when you increase your effort to deliver more power quickly.

A Whole New Sport: Crossing into the Emoto Space This system "carves a niche between elegance and adrenaline," creating a crossover experience that bridges the gap between a standard eMTB and an eMoto dirt bike. By delivering power approaching a dirt bike on a platform weighing less than 50 lbs, the X1 Pro Gen 4 lays the groundwork for a "whole new sport". Unlike a traditional emoto, this system utilizes the bike’s gearing to deliver high torque on technical climbs and blistering speed on the flats, giving you the best of both worlds: "nimble and powerful".

The X1 Pro Gen 4 motor preserves a perfect chain line on any bike and tucks high off the ground, even on modern mountain bikes with a curved downtube. Its torque and cadence sensing deliver power at your chosen cadence and detect when you increase your effort to deliver more power quickly.

X1 Pro GEN 4 Specs: 5000W continuous power, 6500W peak power, 280N.m. Peak Torque ,Compatible - 36V-72V, Bottom Bracket Options - 68-83, 92, 100, 120mm. Redesigned Motor Core for better thermal performance:25% longer motor and redesigned motor core . Highest power-to-weight ratio-1.5kW per kg.

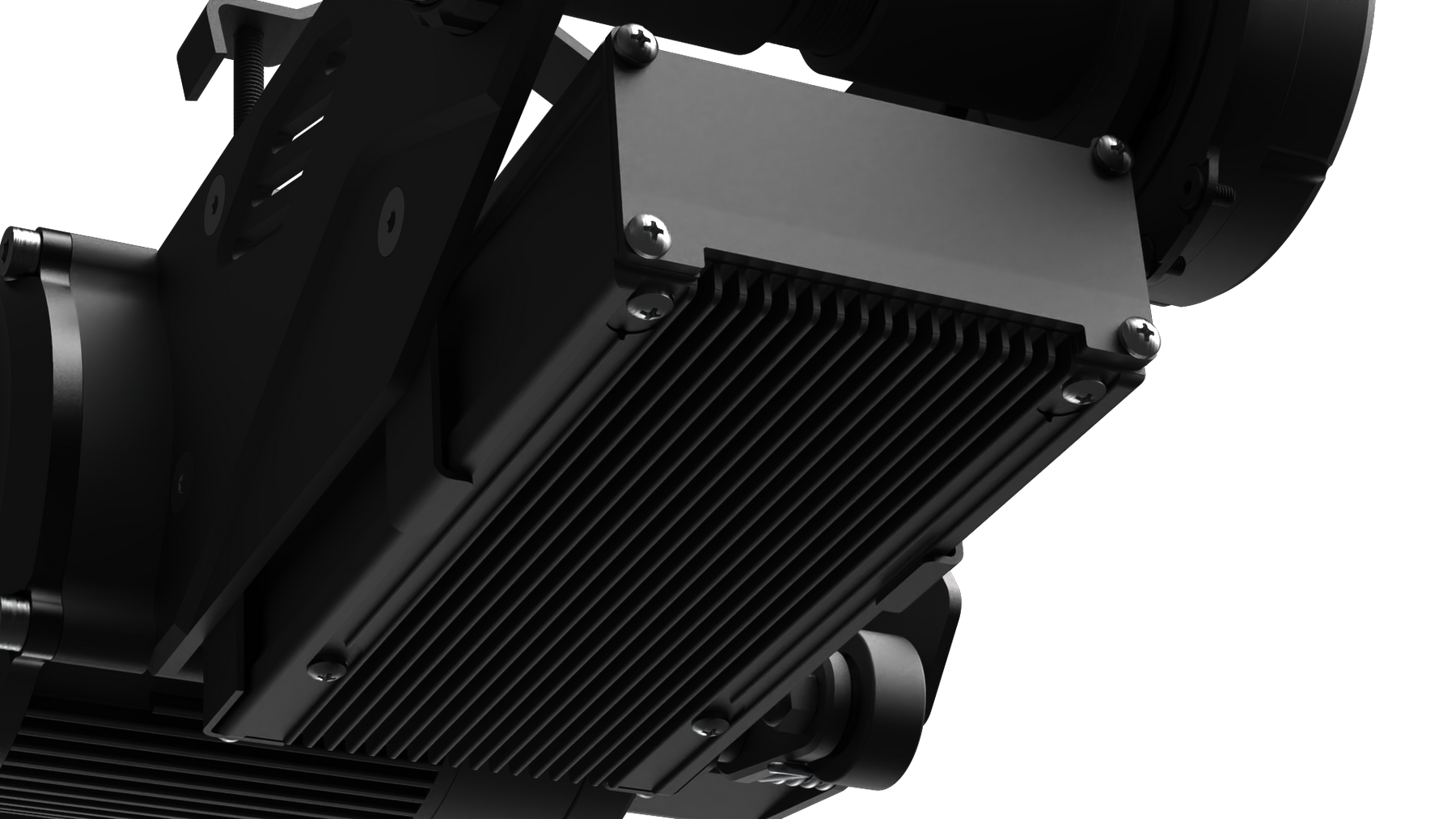

X12 Controller:Delivers high power on a lightweight bike for more extreme rides. Double the capacity of the Gen 3's X6 controllerX12 controller is capable of 84V and 120A input 6.5kW of peak power.

X1 Pro GEN 4 Upgrades: Better freewheel and torque sensor housing. New chainring cover - more durable, requires less hardware allowing easier chaining swaps. Streamlined controller mount. Advanced Torque-Sensing Technology Refined pedal-assist experience. Instant engagement, ISIS-splined torque sensing system.

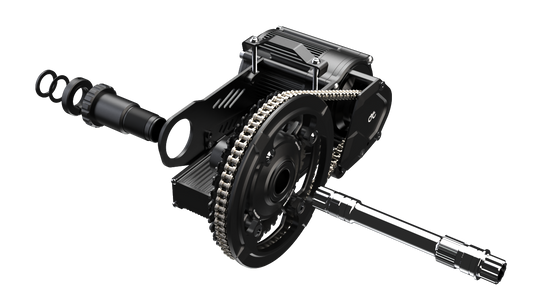

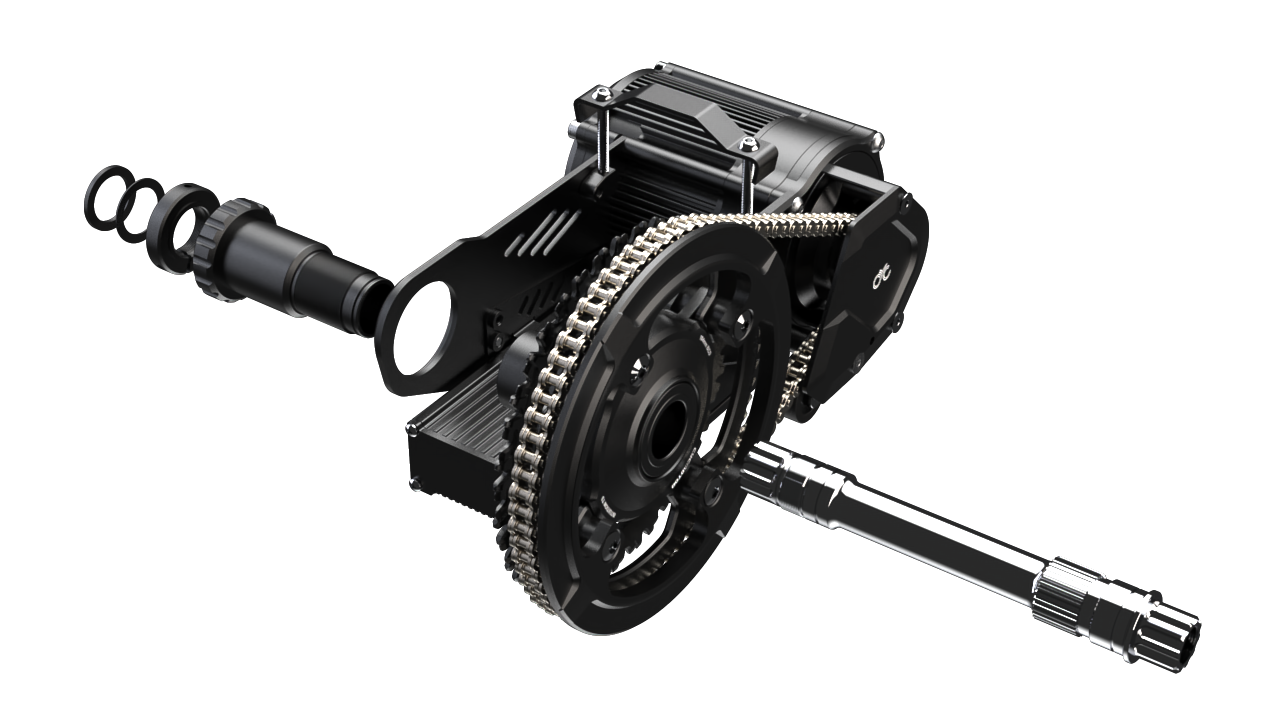

Compatibility with more bike frames: X1 Pro fits over 95% of available bike frames in the world, including-Carbon frames, ISCG-05 bash guard mounts ,Mounting motor in the triangle.

CYC RIDE CONTROL APP for X-Series Controllers

The CYC RIDE CONTROL app is the X1 PRO and the X1 Stealth's configuration system. This is where you will customize your experience & monitor your performance.
The app is connected to your controller via Bluetooth & will allow you to set up your system & change parameters according to your preference.

The CYC RIDE CONTROL app allows you to do multiple things:

  1. Set up your desired power output's for 2 different modes
  2. Customize your parameters for pedal assist, throttle performance, & gear preferences
  3. Configure your torque sensor
  4. Monitor your performance
  5. Set up your e-bike battery & peripherals
  6. See warnings & clear errors

This app is needed to set up a few things to get started such as your regions legal limits, your battery voltage, & wheel diameter. You will also need the app to clear any warnings or errors that may occur.

Complete instructions can be found here:

CYC Ride Control App User Guide

https://youtu.be/GL7O7WCeGHE

X1 Pro Gen 4 User Manual

https://youtu.be/oERIs5JuxEc

https://www.youtube.com/watch?v=OymJfZJBjsA

https://www.youtube.com/watch?v=-aoVh9x5eOI

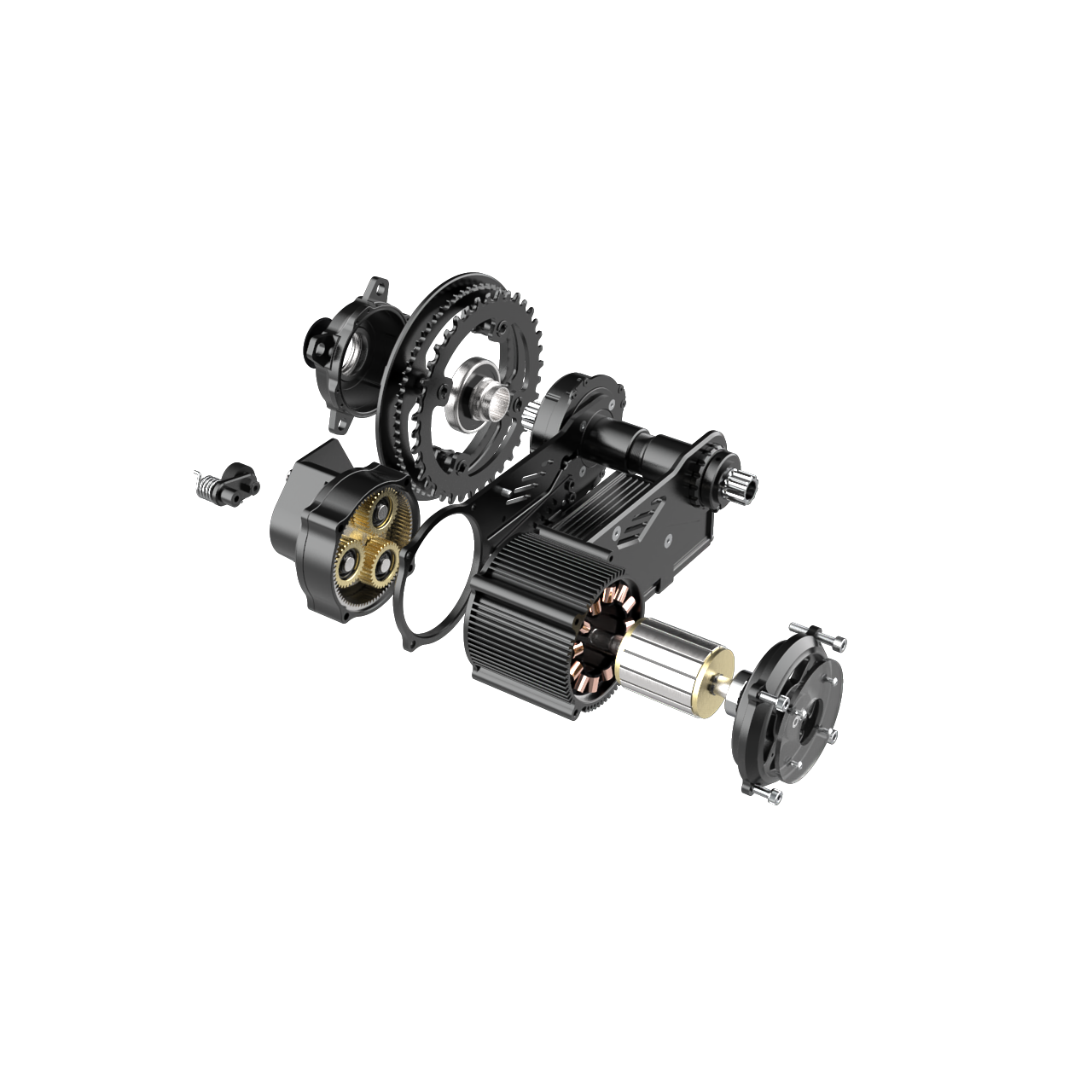

  1. Motor-reduction assembly
  2. 219H chainring-reduction assembly
  3. Bicycle chainring with chainring cover
  4. 219H golden KMC chain
  5. ISIS splined bottom bracket & spindle
  6. 165mm/ 175mm crank arm set

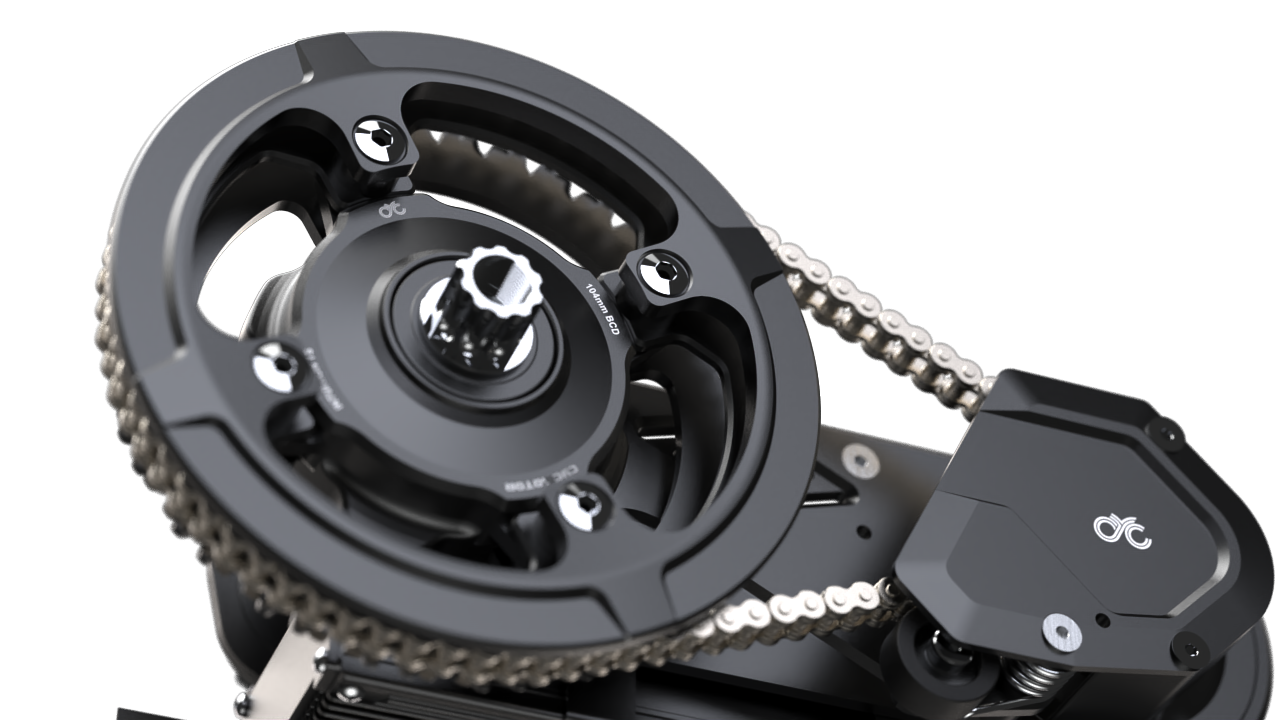

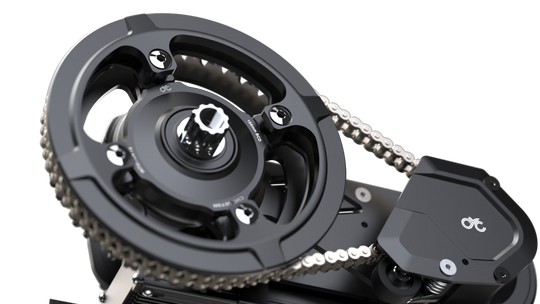

  7. Gen 4 torque sensor
  8. X12 controller (5000W)
  9. Built-in bashguard
  10. Waterproof wire harness
  11. Motor hanger

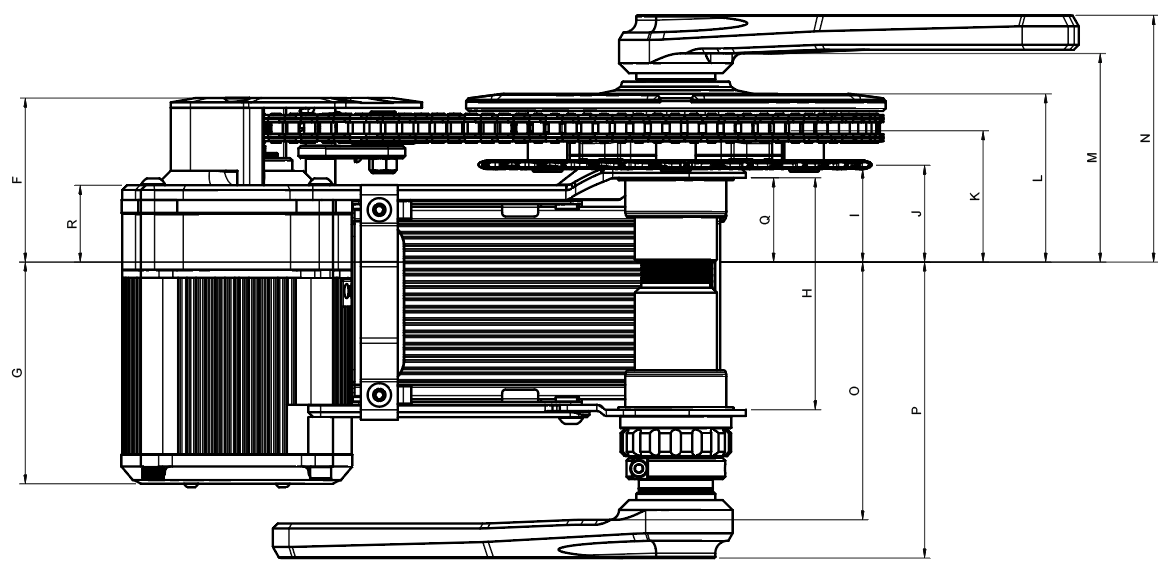

  12. 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
  13. SW102 (up to 52V)/ DS103 Display (up to 72V)
  14. Thumb throttle/ Half-twist throttle/ Full twist throttle
  15. Magnetic speed sensor
  16. Magnetic brake sensors (optional)
  17. User manual (ecopy)

Who is this motor for?

This motor is for those who want maximum power on a bike. It opens new territory for high-powered riding in a new space between an ebike and a motorcycle. It provides power approaching dirt bikes in an ebike weighing less than 50 pounds - so cool. This is a new sport.

Although it has dirt bike power available, most riders will still want to ride it in a power range where they are still getting good exercise with the nuanced torque-sensing feeling of a high-end eMTB. However, the power is there to deliver the speed when they want to climb steep terrain fast or ride it like a dirt bike. It has one over on popular electric dirt bikes because the Gen 4 Pro uses the bike's gears for high torque on the steepest climbs and when going fast.

It has two modes available. One mode is for being a street-legal ebike. This mode can be any of the three legal classes of ebikes with power and speed restrictions. The second mode can be set up to deliver all the power and speed this motor can deliver - which is considerable. You can switch between these modes on the fly.

CYC X1 Pro Gen 4 Mid-drive Motor Kit

$1,250.00
/
